Reo-Pure Reverse Osmosis Units

Reo Pure

Reverse Osmosis is used on water that contains less than 0.1 ppm of iron, less than 2000 ppm total dissolved solids, and less than 10 grains per gallon of total hardness. Reverse Osmosis works through a technique called membrane separation. Raw water enters a module housing the membrane element. Normal water pressure, or boosted pressure, forces the water against the semi-permeable membrane and only clean water molecules pass through the pores in the membrane. Impurities are rejected and flushed away. When compared to distillers, a reverse osmosis system produces approximately the same purity of water (98%) as distillation at approximately 1/10 the cost, and the water tastes fresh and clean, where distilled water has a very flat taste due to the method of production.

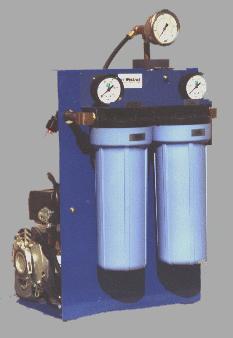

LP-ES Series - 100 GPD to 550 GPD

MODEL
GPD
LPD
MAXIMUM
SYSTEM
PRESSURE
HEIGHT
INCHES
HEIGHT
CM
WIDTH
INCHES
WIDTH
CM
DEPTH
INCHES
DEPTH
CM
WEIGHT
MOTOR
HP
LP-ES100
100
380
185 PSI
24
60
12
30
16
40
44 LBS
60 HZ
1/4
LP-ES200
200
760
185 PSI
34
85
12
30
16
40
52 LBS
60 HZ
1/3
LP-ES425
425
1520
185 PSI
34
85
12
30
16
40
57 LBS
60 HZ
1/3
LP-ES550
  550
2280
185 PSI
34
85
12
30
16
40
62 LBS
60 HZ
1/3

Reo Pure



LP-ES100  100 GPD $1737.40 120V PLUS SHIPPING
LP-ES200  200 GPD $2037.40 120V PLUS SHIPPING
LP-ES425  425 GPD $2595.40 120V PLUS SHIPPING
LP-ES550  550 GPD  $2821.95 120V PLUS SHIPPING

MAXIMUM FEED WATER TEMPERATURE:
85F (29)C

FEED WATER PRESSURE:
35 PSI MINIMUM-85 PSI MAXIMUM

pH RANGE:
4.0- 10.0

TURBIDITY:
MUST BE REMOVED

IRON:
MAXIMUM TOLERANCE 0.5 PPM (DISSOLVED ONLY)

HARDNESS:
OVER 10 GPG SHOULD BE SOFTENED

HYDROGEN SULFIDE: MUST BE REMOVED

SALT REJECTION: 98% NOMINAL
ELECTRICAL: 120V, 60HZ ,----- 220V AVAILABLE  (50HZ AVAILABLE ON REQUEST)

Compact Design
95%-99% TDS Reduction
Fully Automatic Operation
Completely Assembled And Pre Tested
Pre Filtration (10" Standard Sediment Cartridge)
Post Filtration (10" Standard Carbon Cartridge)
Easy maintenance
Simple On/Off Controls
High Pressure Gauge
Land Based
Epoxy coated Frame
Manual Flush Valve
Pre and Post Pressure Gauges
TFC Membranes
Membrane Flush Valve
Water Relief Valve
High Pressure Switch
Low Pressure Switch
Reject Water Re-Circulating Loop
Post Filtration
60Hz/120v Motor

Easy Hook-Up Includes: RO-200 14 Gallon Tank & Fittings including: 3/8" dispensing Faucet, Saddle Tap Valve
And drain saddle tee! (Easy Installation Package) RO-200 Tank is 24 lbs and Tank Dimensions are 15 3/8 Dia. X  22 3 1/16 High

LARGER TANK UPGRADES AVAILABLE FOR MORE STORAGE

REVERSE OSMOSIS PLANTS ARE CONSIDERED SPECIAL ORDER ITEMS.
